Cadoro full-roll purchasing coverage: 500 sq ft per roll. Confirmed for this product by Darrell. Use this coverage when estimating whole rolls.

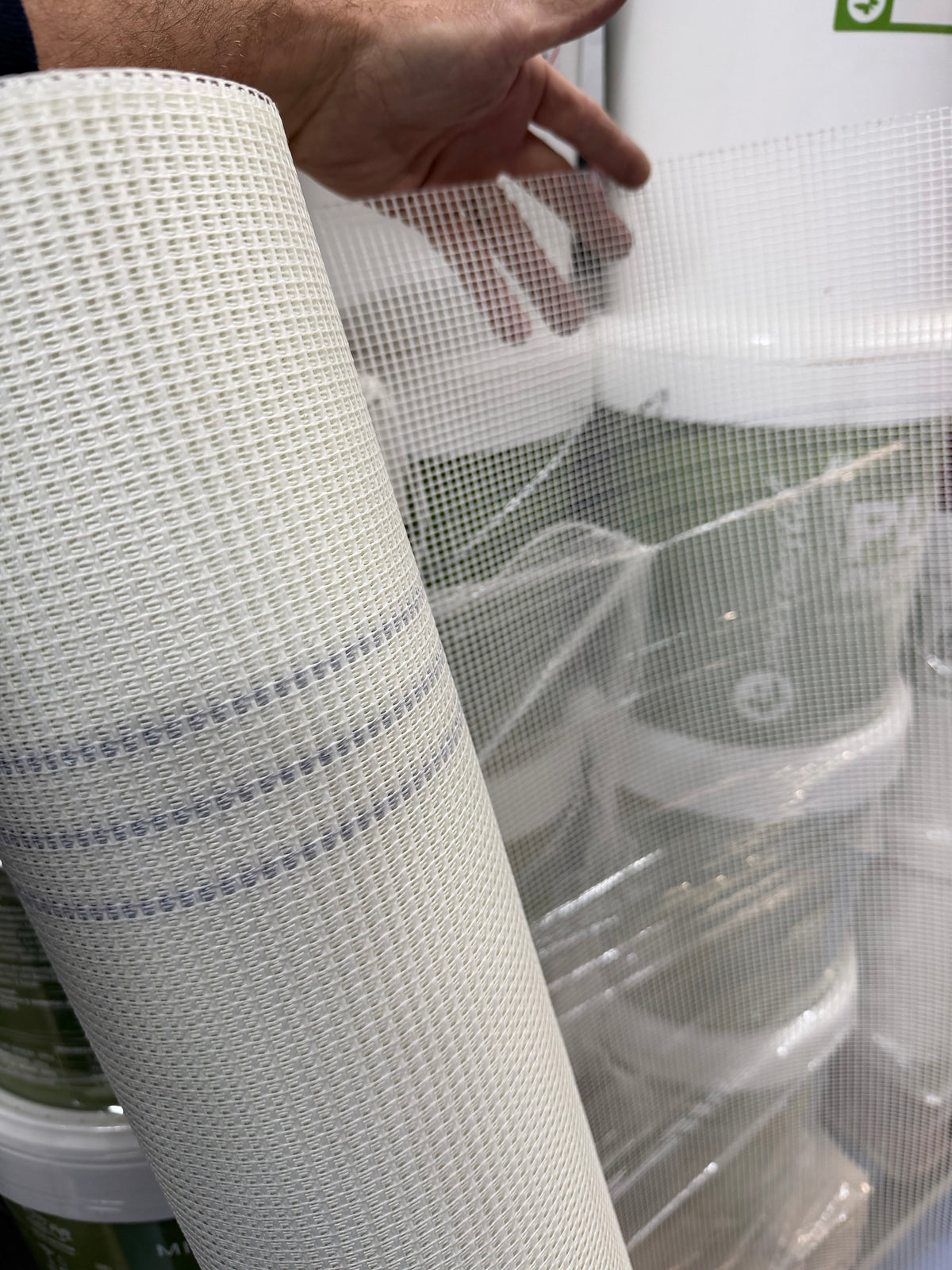

FIBERGLASS MESH 160 GR.

PRODUCT INFORMATION

Fiberglass mesh.

TECHNICAL DATA OF APPLICATION

Product

description Fiberglass mesh fabric.

Main uses It is mainly used to reinforce microcement coatings.

Conservation It is advisable to store the fiberglass rolls in a dry room. Optimum storage temperature is -10 C to 50 C.

Package Roll 50 m x 160 gr.

Technical data

1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 1. Types of fiberglass yarns; yarn 136 tex. and direct roving: 400 tex.

2. Distribution in 10cm: Warp 20x2, Weft: 16x1.

3. Type of fabric: Chiffon back.

4. Standard width: 100 cm

5. Roll length: 50 linear meters

6. Weight of the mesh without sizing: 145g / m2.

7. Mesh weight with sizing: 160 +/- 5g / m2.

8. L.O.I: 16 +/- 2%.

9. Type of Treatment: Resistant to alkali (FV160 indicated for the SATE system)

10. Frame light: Frame dimension: 3.6x3.6mm.

11. Tensile strength and elongation: Minimum strength (N / 5cm) and maximum

elongation (%) according to EN ISO13934-1 standard. Standard condition: 1300/1300 3.5

/ 3.5 5% NaOH solution 650/650 3.5 /3.5 Quick Test: 585/585 3.5 / 3.5

12. Specimen width: 5 cm.

13. Distance between clamps 20cm.

14. Resistance: Longitudinal direction 203Kg. Cross direction 225 Kg.
